01Concrete foundation protection
Waterproofing
Exterior concrete-wall waterproofing with Tremco WATCHDOG H3 or TUFF-N-DRI H8 and dimple board, serving Middle Tennessee and Greater Nashville.
Request a Free Estimate
Waterproofing
What this service covers
Concrete Foundation Waterproofing
Black Dog installs exterior waterproofing on concrete foundation walls using a spray-applied membrane followed by dimple board. The spray forms the water-resistant barrier at the wall. The dimple board adds protection over the coating and provides a drainage space outside the foundation. We use Tremco WATCHDOG H3 or TUFF-N-DRI H8 depending on the job, with DMX and other quality dimple membranes.
- Tremco WATCHDOG H3 or TUFF-N-DRI H8
- DMX and other quality dimple membranes
- Spray and dimple board on concrete walls
Tremco WATCHDOG H3
WATCHDOG H3 is a flexible, spray-applied asphalt waterproofing membrane enhanced with polymers. It adheres to the wall to form a continuous coating and can bridge small concrete shrinkage cracks. Its formulation helps it stay in place on vertical surfaces during application, supporting consistent coating thickness.
Tremco TUFF-N-DRI H8
TUFF-N-DRI H8 is a flexible, spray-applied waterproofing membrane with greater tested resistance to water pressure than WATCHDOG H3. It stretches across small concrete shrinkage cracks to help maintain the water barrier. Black Dog uses H3 or H8 according to the needs of the job.
Dimple Board: Drainage and Protection
Our concrete-wall waterproofing includes dimple board over the sprayed membrane. We use DMX and other quality brands. The raised dimples create a drainage space, while the sheet helps protect the waterproofing coating from surrounding backfill.

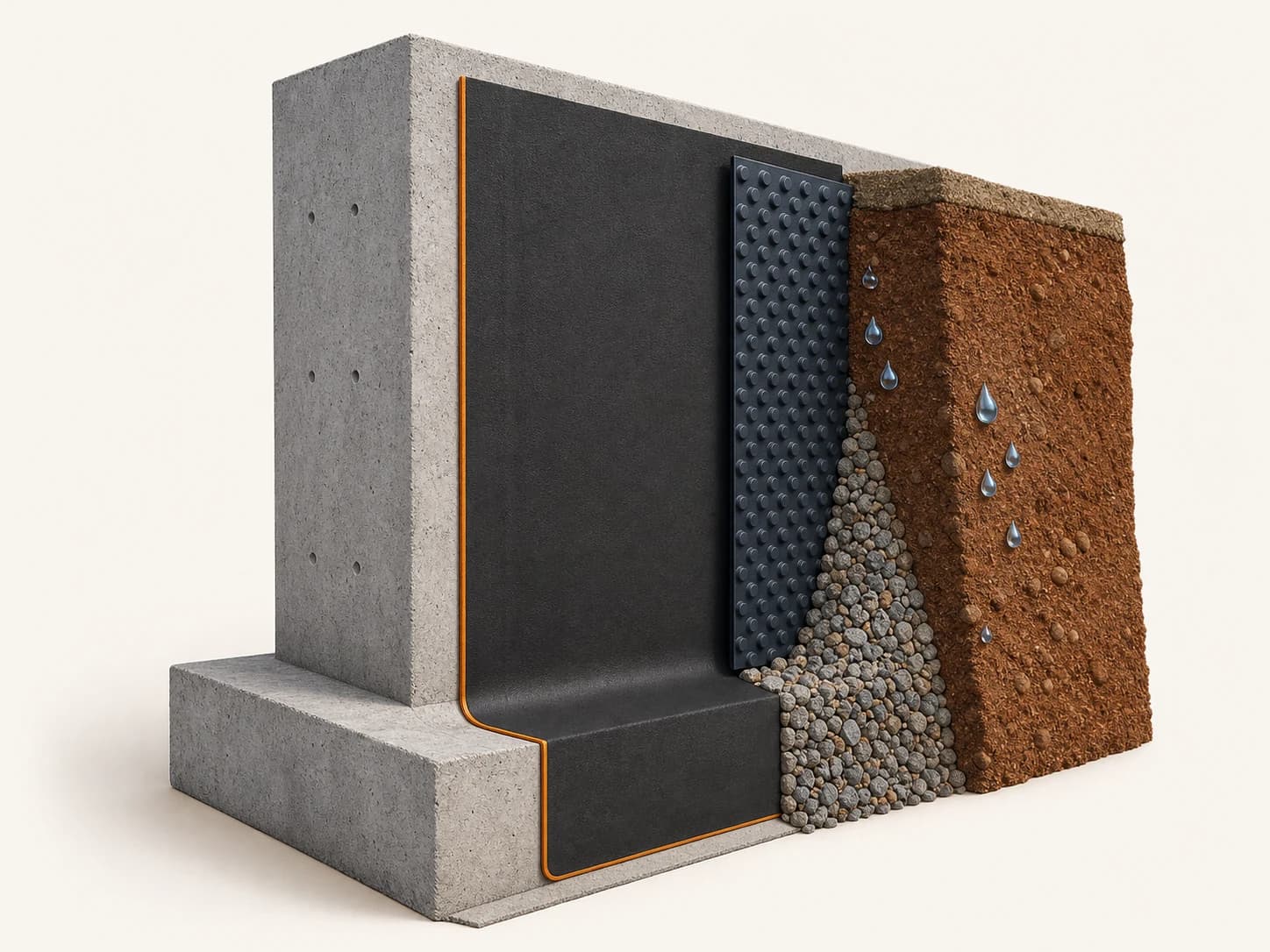

The membrane and dimple board work together: one forms the barrier at the wall, and the other protects it and helps water move toward the foundation drainage system.
Where this service fits
Concrete foundation walls that need an exterior water barrier and a protective drainage layer before backfilling.
Information for your estimate
- Project location, wall dimensions, and plans or photos
- Foundation condition and access around the walls
- Construction stage and expected backfill date
Service details

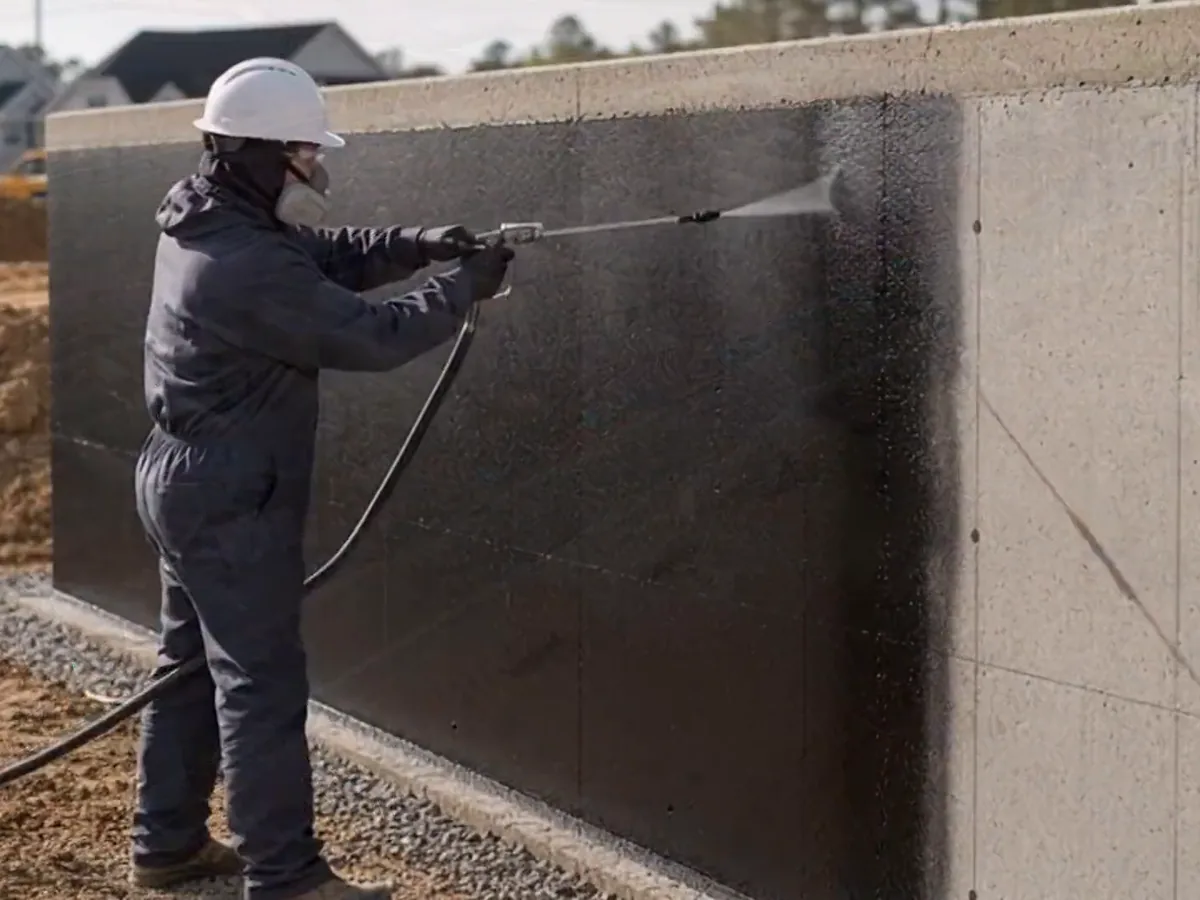

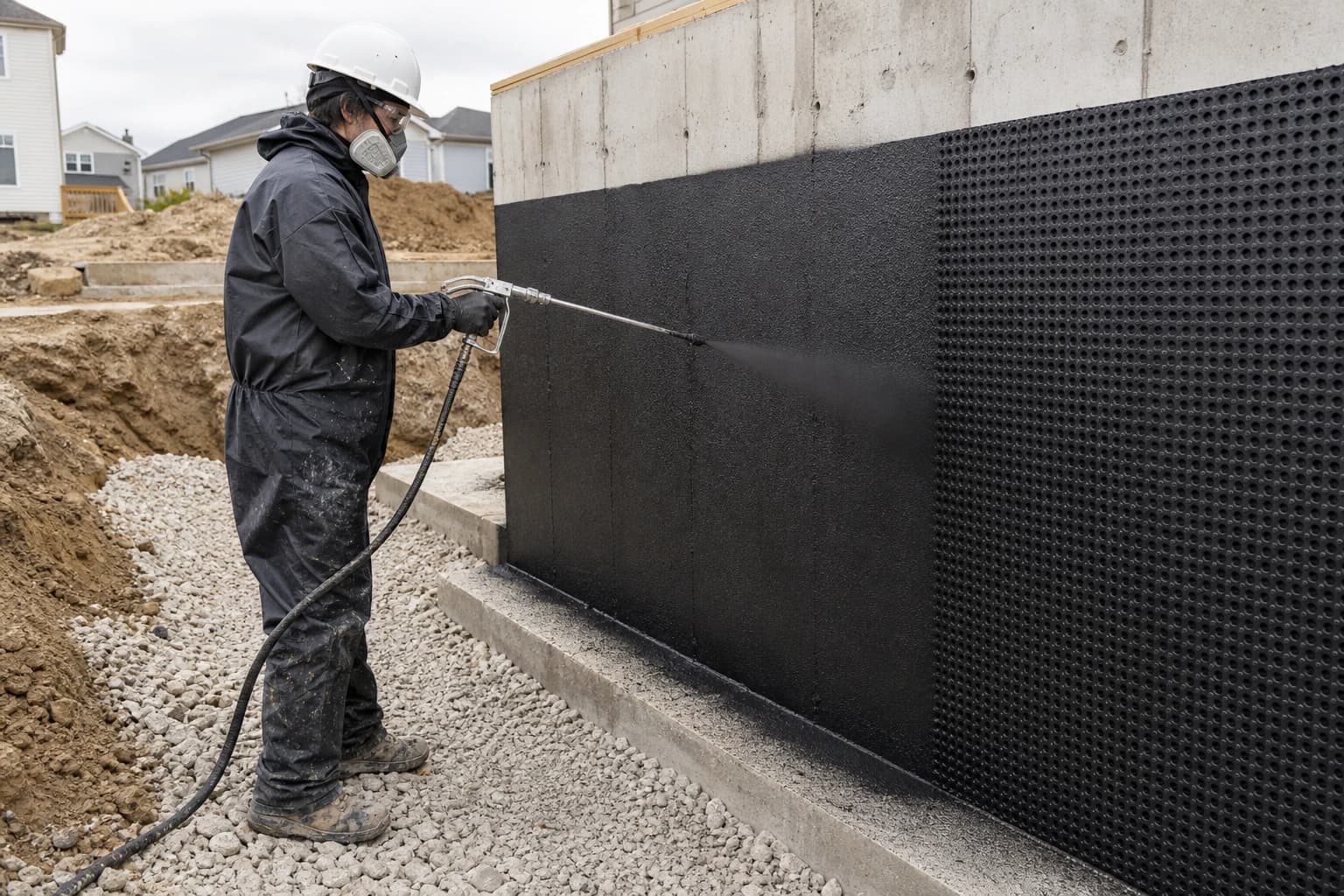

Spray-applied waterproofing membrane on an exterior concrete foundation wall

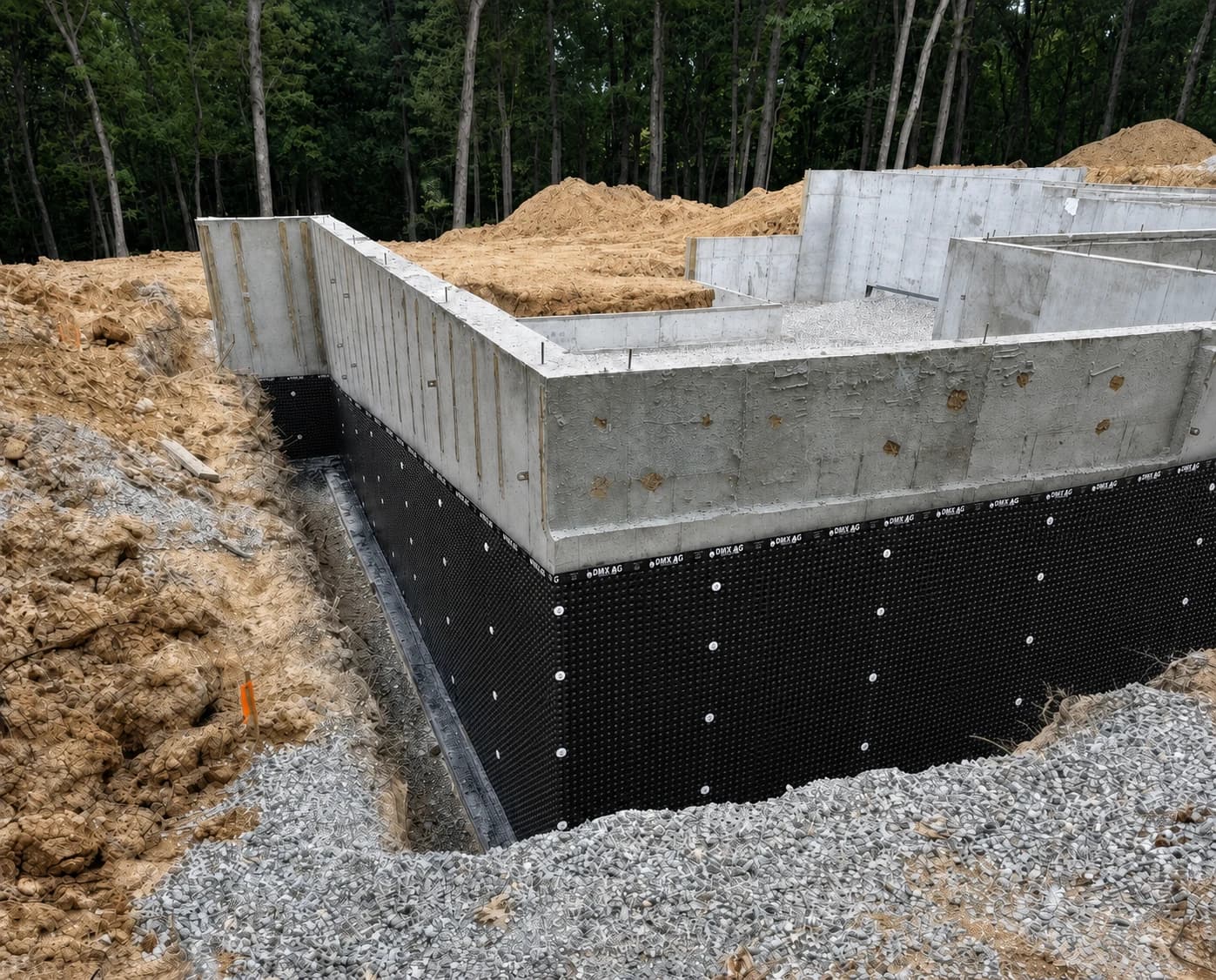

Dimple-board protection around a foundation corner

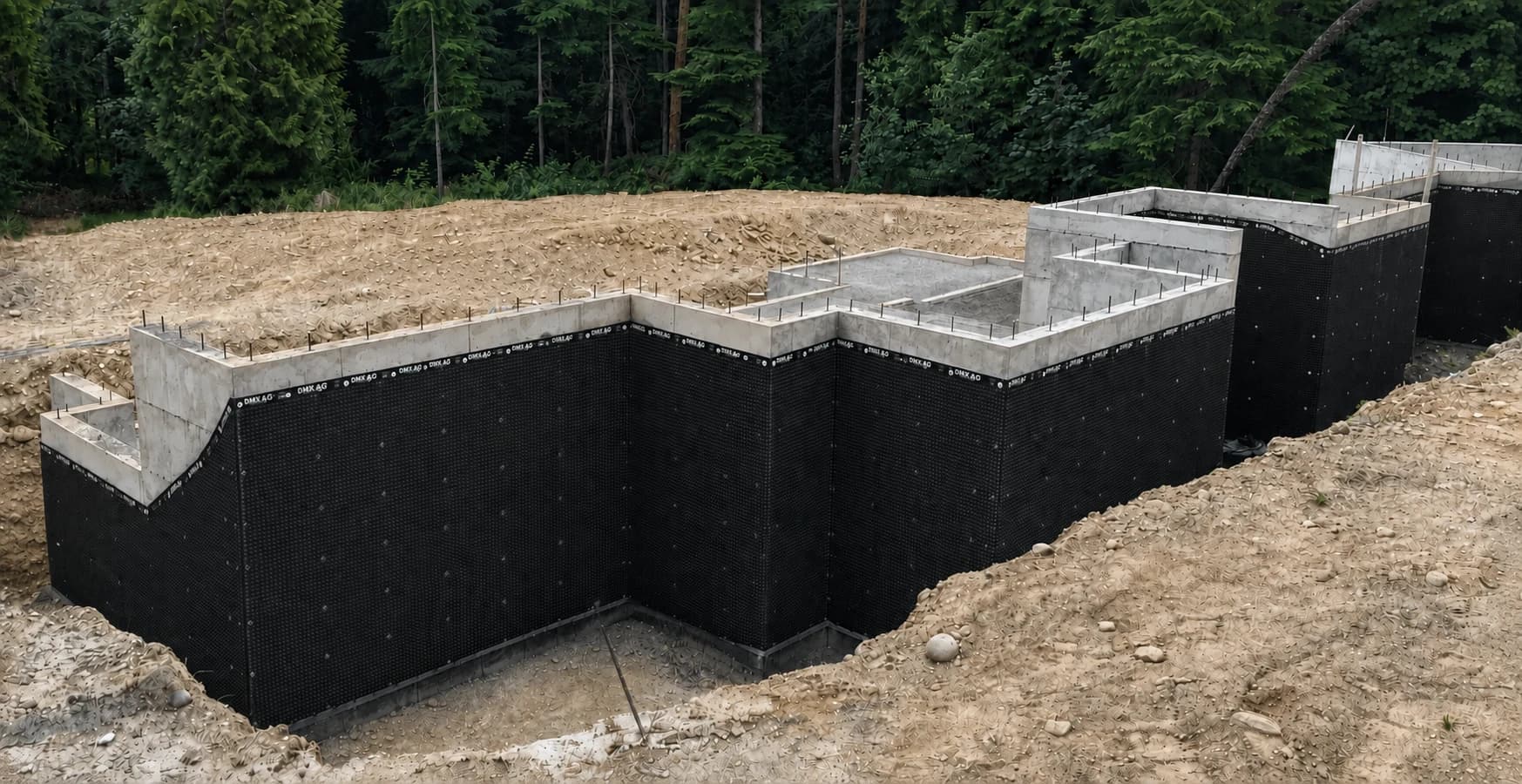

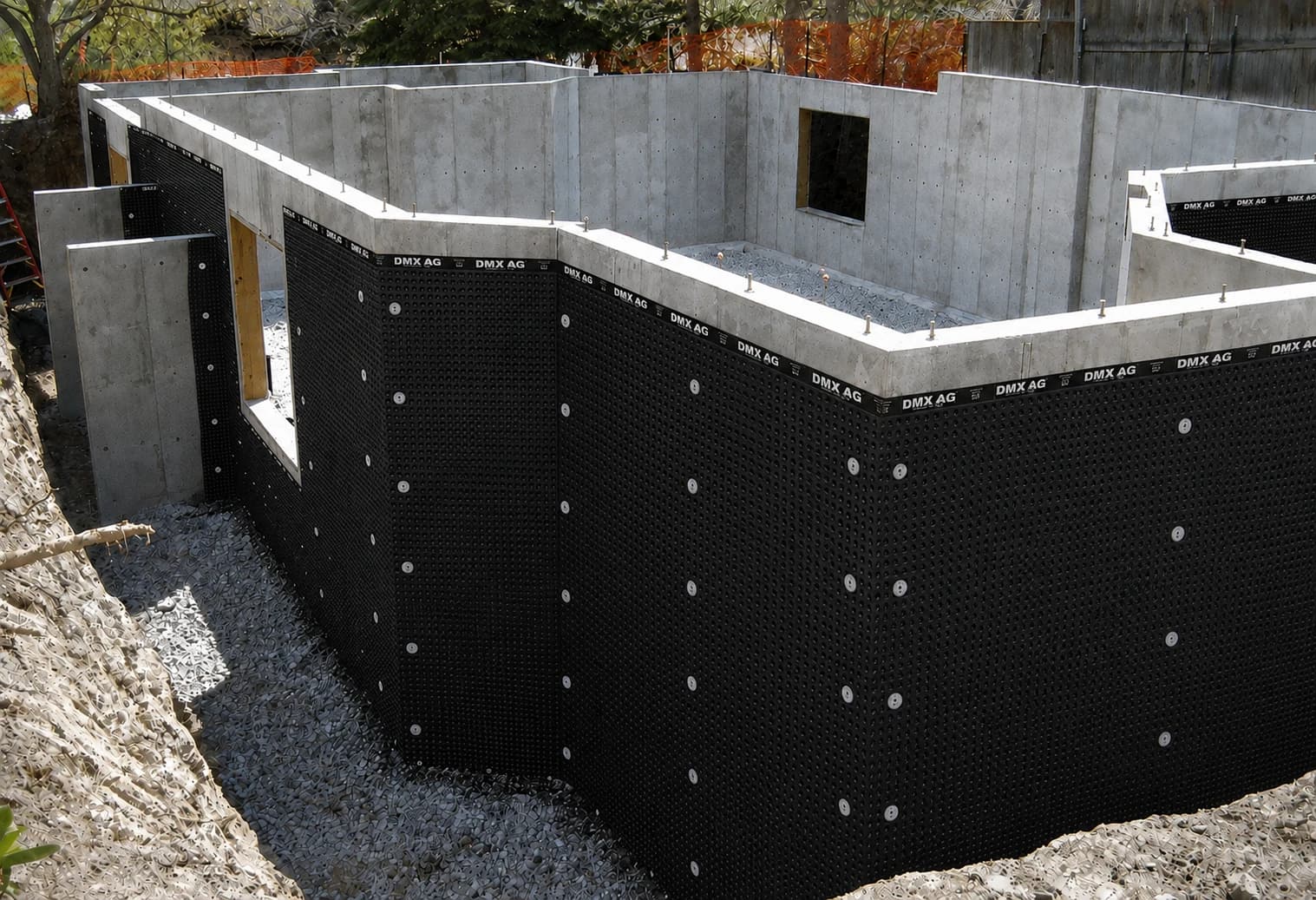

Dimple-board protection around foundation walls and openings
Free estimates
Tell us what you're building
Send your project location, plans or photos, and the work you need. We’ll review the details with you and prepare a free estimate.
